منزل المنتجاتمرساة ما بعد التوتر

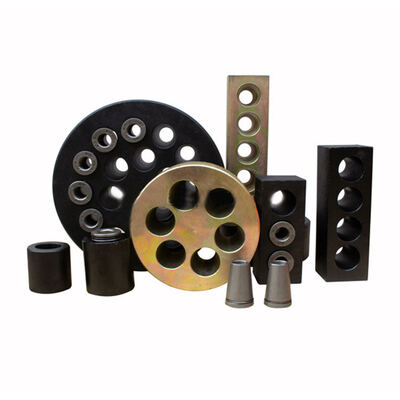

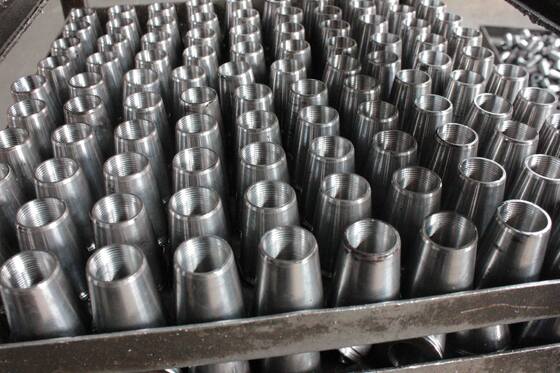

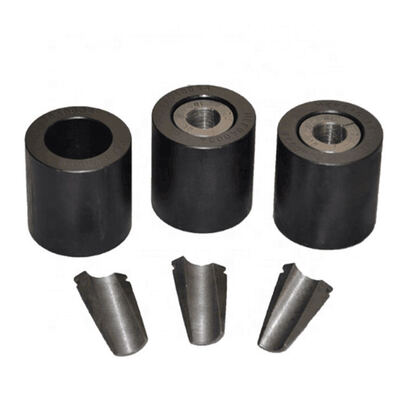

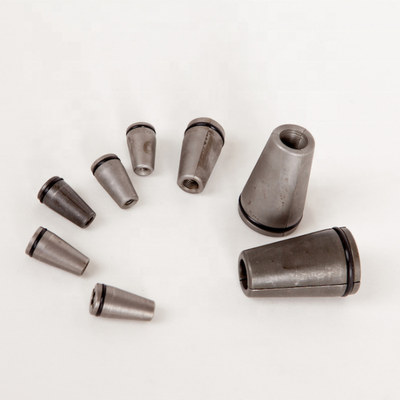

12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges

ابن دردش الآن
شهادة
الصين Sunrise Foundry CO.,LTD الشهادات
الصين Sunrise Foundry CO.,LTD الشهادات
مزود محترف ومسؤول جداً عملنا معه حتى الآن آمل أن يسير كل شيء على ما يرام وأن يكون لدينا مستقبل مشرق

—— جاك

نحن نعمل سوياً منذ خمس سنوات دائماً يمكننا الحصول على أسعار تنافسية جداً على قطع الحديد المصبوب

—— نفذ

صناعة الصهارة هي خيار جيد إذا كنت تبحث عن أجزاء حديدية صب، يمكنهم تقديم المشورة المهنية على توفير التكاليف، وفي الوقت نفسه ضمان الجودة.نحصل على الكثير من الخصومات منهم خلال هذه السنوات العملآمل أن يكون هذا مفيدًا لك

—— ستيف

12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges

12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges
12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges 12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges 12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges 12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges

صورة كبيرة :  12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges افضل سعر

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: NC3532
إصدار الشهادات: ISO9001,CE,SGS
رقم الموديل: 3532
وثيقة: كتيب المنتج PDF
شروط الدفع والشحن:
الحد الأدنى لكمية: 100 قطعة
الأسعار: Can talk
تفاصيل التغليف: حالة خشبية
وقت التسليم: 30 يوما
شروط الدفع: تي / تي، خطاب الاعتماد
القدرة على العرض: 60،000 جهاز كمبيوتر شهريًا
مفصلة وصف المنتج
اسم العنصر: برميل وأوتاد مقاس: 12.7 م 12.9 ملم 15.24 ملم 5 ملم
طلب: جسر ، سكة حديد ، طريق سريع ، مبنى معيار: AISI ASTM DIN GB BS JIS
لون: المجلفن الأسود الذهبي حسب الطلب ميزة: متين ومضاد للتآكل

12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges



12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges 0

Type

The number of PC strand root





Anchor plate
ΦA×B×ΦC


inner diameter of ductΦD




Anchor ring
ΦE×F
Spiral reinforcement
Anchor plate
Tension jack supporting models




ΦG×ΦH×L




laps
spacing of mounting holeΦK
diameter of mounting hole


YDC260Q
(YDC240Q)
YJM15-1
1
80×8O×Φ12

Φ45×45
Φ70×Φ6×30
4


YJM15-2
2
135×70×Φ58
Φ50
Φ78×45
100×Φ8×40
4
113
M10

YJM15-3
3
135×70×Φ58
Φ50
Φ83×45
100×Φ8×40
4
113
M10
YCW100B
YJM15-4
4
136×80×Φ62
Φ55
Φ93×45
130×Φ10×40
4
115
M10
YCW100B
YJM15-5
5
146×80×Φ62
Φ55
Φ103×45
140×Φ10×50
4
126
M10
YCW100B
YCW150B
YJM15-6
6
162×100×Φ78
Φ70
Φ117×47
160×Φ12×50
4
140
M10
YCW150B
YJM15-7
7
162×100×Φ78
Φ70
Φ117×47
160×Φ12×50
4
140
M10
YCW150B
YCW250B
YJM1S-8
8
176×120×Φ88
Φ80
Φ127×50
170×Φ14×50
5
153
M10
YCW250B
YJM15-9
9
183×120×Φ90
Φ80
Φ137×50
180×Φ14×50
5
162
M10
YCW250B
YJM15-10
10
210×120×Φ100
Φ90
Φ147×50
210×Φ14×60
5
180
M10
YCW250B
YJM15-11
11
210×140×Φ100
Φ90
Φ157×50
210×Φ14×60
5
185
M10
YCW250B
YJM15-12
12
210×140×Φ100
Φ90
Φ157×50
210×Φ14×60
5
185
M10
YCW250B
YJM15-13
13
210×140×Φ100
Φ90
Φ157×55
210×Φ14×60
5
185
M10
YCW350B
YJM15-14
14
234×160×Φ100
Φ90
Φ167×60
230×Φ16×60
5
200
M10
YCW350B
YJM15-15
15
234×160×Φ100
Φ90
Φ167×60
230×Φ14×60
5
200
M10
YCW350B
YJM15-16
16
244×180×Φ100
Φ-90
Φ177×60
230×Φ16×60
5
210
M10
YCW350B
YCW400B
YJM15-17
17
250×180×Φ100
Φ90
Φ187×65
230×Φ16×60
5
218
M10
YCW350B
YCW400B
YJM15-18
18
265×200×Φ110
Φ100
Φ187×65
250×Φ16×60
5
228
M10
YCW400B
YJM15-19
19
265×200×Φ110
Φ100
Φ187×65
250×Φ16×60
6
228
M10
YCW400B
YCW500A
YJM15-20/21/22
21/22
310×240×Φ130
Φ120
Φ215×70
300×Φ18×60
6
260
M10
YCW500A
YJM15-23
23
310×240×Φ140
Φ130
Φ217×70
300×Φ22×60
6
270
M10
YCW650A
YJM15-25/26/27
25/26/27
350×290×Φ140
Φ130
Φ260×90
310×Φ16×60
7
290
M10
YCW650A
YJM15-30/31
30/31
370×290×Φ150
Φ140
Φ290×105
400×Φ20×60
8
350
M10
YCW900A
YJM15-34/37
34/37
465×340×Φ170
Φ160
Φ320×112
450×Φ20×60
8
376
M10
YCW900A
YJMI5-43/44
43/44
500×450×Φ170
Φ160
Φ345×130
470×Φ20×60
8
400
M10
YCW1200A





About Us



Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Gray Iron,

Ductile Iron Castings and and any other precision castings for more than 25 years.



We are dedicated to meet different requirements of various customers across the world, products are mainly

involved Agricultural and Construction Machinery, Hydraulic, Mining industry, Municipal Products, some steel

and stainless steel castings for Pumps and Valves, Pipe Fittings, etc.



Please feel free to contact us if you have any requests.



Production Process



12.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges 112.7m 12.9mm 15.24mm 5mm Prestressed Concrete Anchor Barrel and Wedges 2



FAQ



Q1: What is your payment terms:
A1: TT FOB: 30% deposite, balance before shipment. TT CIF: 30% deposite, balance based on scanned
BL.LC 100% at sight



Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.



Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.



Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard cargo to
us first. We can also send our engineer to your field to check it directly, if necessary.



Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
